Digital Process Indicator / Controller
Manufacturing and Suppliers of Digital Process Indicator / Controller
Introduction of Digital Process Indicator
MODEL: SC / T - 300
Features
- Ruggedised, State-of-the-art Micro-controller based DUAL channel Indicator - Controller
- 4 Digit RED LED display, size: ½ inch.
- Isolated Retransmission output for each channel
- Settable Hysteresis for four relays
- User configurable span and zero for both inputs.
- Serial Communication on Isolated RS 485 with Modbus RTU protocol for SCADA applications ( Optional )
- Flameproof enclosure - Optional
Application
- DPI-202 is intended to be used for indication and control application
- 7 segment RED LED display makes it visible from long distance.
- 4 digit resolution gives accuracy as high as ± 0.2 % ± 1 LSD.
- Unit accepts 2 nos 4 - 20 mADC linear inputs, the most commonly used signal in process industry. User can connect 2 wire / 4 wire inputs from transmitter easily to each input. Transmitter power supply will be provided by unit in 2 wire mode.
Optional
- Optically Isolated Serial port RS 485 with MODBUS RTU protocol gives the user facility to connect the unit on all standard SCADA and DCS.

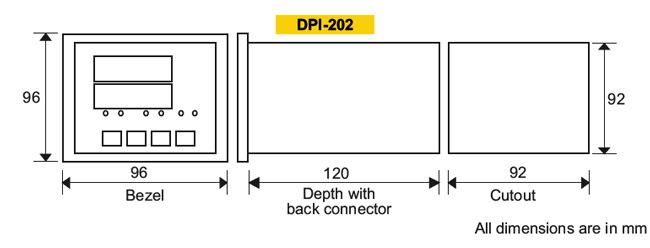

Dimensional Drawing
