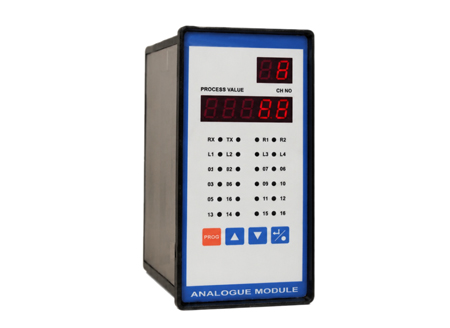

Main image preview

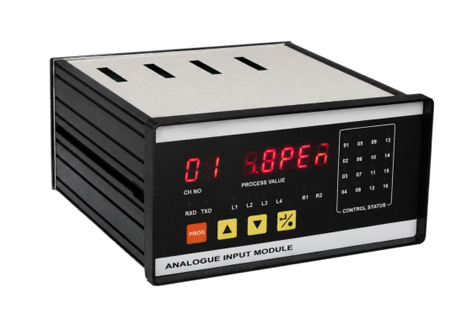

Thumbnail 1: Description of image 1 temperature-scanner

Introduction of Temperature Scanner

MODEL: SC / T - 700

Application

Spink 1600 is a highly versatile and economical module having Analog Inputs with RS485 / Ethernet port for online communication. It is an ideal solution for SCADA applications in Process Industries. Spink 1600 can be used along with PLC's thus reducing project cost substantially. Analog input to Spink can be mA / RTD (PT100, 3 wire) / Thermocouple or Voltage different for each channel.

The unit has seven segment LED display for displaying process value, thus providing local indication to the operator. The Alarm / Control status of each channel is indicated on front LEDs.

Serial port RS485 - 2 wire with Modbus RTU protocol or Ethernet with MODBUS TCP is provided. This feature makes Spink compatible with all the standard SCADA software and PLC's used in Industry

Optional

• Internal relay output 1 or 2 for common alarm.
• External relay output 8 or 16 for Individual alarm / Alarm & Trip / Control.
• Ethernet communication facility with MODBUS TCP protocol.

Features:
  • Ruggedised, State-of-the-art Micro-controller based system.
  • Horizontal or Vertical version as per your panel design
  • Universal input mA / RTD / Volt / Thermocouples for each channel (factory set).
  • Control Output for each channel, indication on front.
  • User configurable span for mA / Volt inputs.
  • Communication on isolated RS485 / Ethernet port with MODBUS / MODBUS TCP protocol.
  • Ideal for SCADA applications.
  • Flameproof enclosure - Optional.
