Top Mounted Level Switch

Top Mounted Level Switch
SERIES : SC / L - 401

Operations

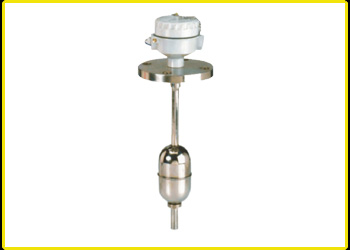

“SPINK CONTROLS” Manufacture Magnetically Float Operated Top Mounted Level Switch which is intended for controlling one or multi Levels by using Reed Switch. The Unit Consists of Vertical Guide Pipe (Stem), Reed Switches are located, Magnetic Float Sliding over the Stem according to the level in the tank. After passing the float, the reed relay will retain their output state. Various materials of construction are available depending up on Service Condition. Maximum 4 Set points can be given in a Single Level Switch & Maximum stem length will be 3 Meters.

Salient Features
One Moving Component Exists, so that no wear of float. The switch operates on the principle of magnetic flux coupling with no mechanical connection so that fluid contamination of switch components can not occur.

  • ➩ Suitable for any fluid having Specific Gravity Above 0.7
  • ➩ Operate in any Position from vertical to an inclined angle of 30°C
  • ➩ Minimum possible Distance between 2 Level set Points is 75 mm


Design Features :


  • ➩ Float: SS 316 or Teflon Coated or PP
  • ➩ Process connection: Screwed or Flanged
  • ➩ Switch Rating: Hermetically Sealed Magnetically Operated Reed Switch with Rhodium Contact SPST / SPDT 0.5 Amp @ 240 V AC
  • ➩ Switch housing: Weather Proof IP 65 or Flame Proof Gr. A, II B
  • ➩ Operating pressure: 10 kg/cm²
  • ➩ Operating temp: Max.100°C
  • ➩ Cable entry: ½” NPT (f) or ¾” ET (f)
  • ➩ No of Switches : As Per Customer Requirement
  • ➩ Stem length: Up to 3 Meters
