Head Mount Temperature Transmitter
Manufacturing and Suppliers of Head Mount Temperature Transmitter
Introduction of Head Mount Temperature Transmitter
MODEL: SC / T - 500
Two Wire Loop Powered Head Mount Temperature Transmi

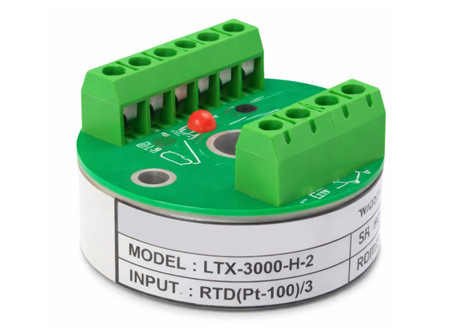

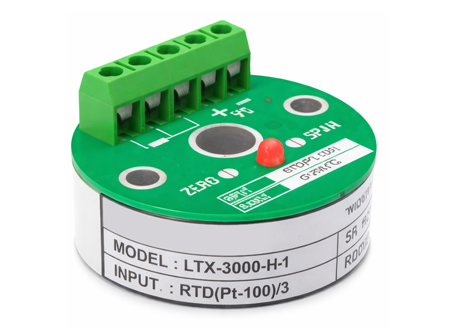

Spink Controls' Head Mounted Temperature Transmitter is a compact, reliable device designed to convert RTD (Pt-100) or thermocouple signals into a standard 4–20 mA output. It offers high accuracy of ±0.5% to ±1% of the calibrated range with on-site zero and span adjustment. Operating on a 12–36 VDC loop supply, it includes built-in LED loop status indication and burn-out detection for enhanced safety. With a rugged design and wide operating temperature range of 10°C to 70°C, it ensures stable and precise temperature measurement for industrial applications.
Features:
- Two-wire design (supply and output on the same lines)
- Accepts RTD (Pt-100) / thermocouple / millivolt input.
- (4-20) mA non-isolated and isolated output
- ZERO and SPAN adjustments for on-site calibration
- Easily fits in std. Thermocouple head (weather or flame-proof or explosion-proof JB).
- Loop supply of 12 to 36VDC (with loop continuity LED)
- Saturation on or open sensor current limited to 25mA.
- Reverse polarity protec on.
- Available in industry standard head mount design.
