Introduction of Displacer Level Switch

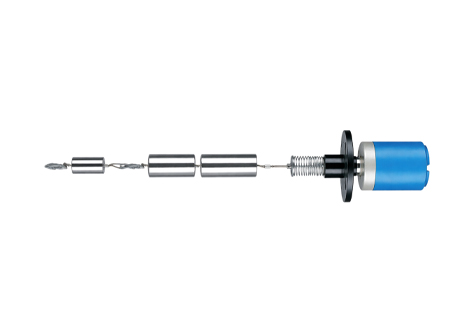

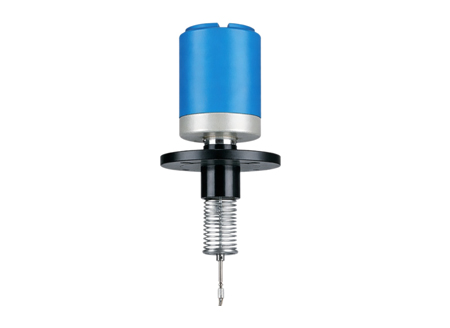

MODEL: SC / L - 1200

Displacer Type Level Switch is based on buoyancy principal.
It is used for Controlling the Liquid Level in underground & overhead tanks.

Technical Specification of Displacer Level Switch:
  • Application : Water, Furnace oil, Lube Oil Chemical, Solvent. effluent etc.
  • Protection : Weatherprooof IP 65/Ex-Proof IIA & IIB
  • Output : Relay Contacts
  • Switch Rating : 5 Amps 230 VAC
  • Pressure : 20 kg/cm²
  • Temperature : 150° C
  • Connection : 3"(Min.) Flanged or Screwed
  • Service : To Mention
  • Op Press kg/cm2g/ Temp/S,G : To Mention
